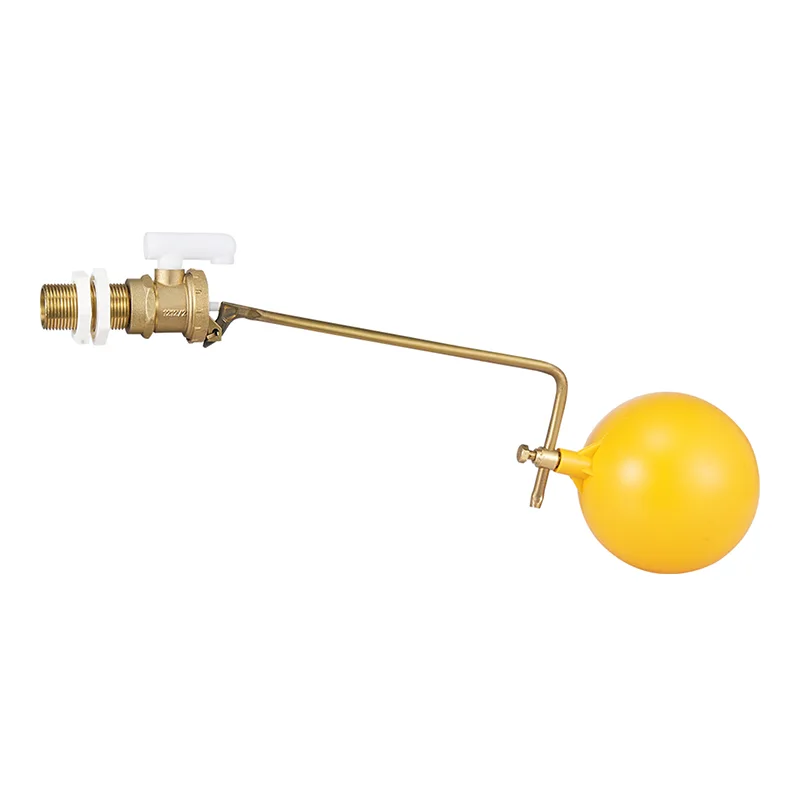

Bronze Plastic Lever-Type Float Valve

Valve body assembly: The main body of the "Bronze plastic lever-type float valve" is precisely cast from brass, featuring excellent corrosion resistance and high-pressure resistance. It can withstand long-term water medium erosion and has its surface polished to enhance corrosion resistance and appearance. It can operate stably in a temperature range of -10℃ to 80℃ and is compatible with most municipal water supply pressures. The multi-layer sealing structure ensures no leakage during long-term use.

Precise structural design: The valve body features standard threaded interfaces, facilitating easy installation and enabling seamless connection to the piping system. The internal mechanical structure is simple, relying on the float lever principle for automatic opening and closing. It has a low failure rate and is easy to maintain. The connection between the float and the metal rod is stable, and the lever ratio design is reasonable to ensure precise water level control.

Inlet valve body: Made of brass casting, it has a solid structure and strong resistance to water pressure fluctuations. It is unlikely to malfunction over a long period of use. The external threads are 1/2" or 3/4" industry-standard interfaces, and it is paired with a sealing gasket to ensure a tight connection with the water supply pipeline and prevent water leakage.

Levers: Made of brass, they possess both rigidity and corrosion resistance. They connect the valve body and the float ball, and the movement of the float ball drives the valve core to move within the valve body.

Float ball component: The eye-catching yellow float is made of high-density engineering plastic (PP/ABS), which is lightweight, has stable buoyancy, has a smooth surface that is resistant to dirt, and responds sensitively to water level changes, driving the valve core to operate. The interior is filled with inert gas, ensuring no water ingress and no loss of effectiveness over a long period. The color is bright and easy to observe the water level status. The connecting threads between the float and the lever can be adjusted for length, suitable for different depths of water tanks.

The working principle of the intelligent device: When the water level drops, the float descends accordingly. Through the lever, it drives the valve core to open, allowing water to flow in. When the water level rises to the set height, the float rises, driving the valve core to close, stopping the water supply. The entire process is fully automatic and requires no manual intervention.

Fully mechanical structure: No electricity or external control required. It achieves automatic water replenishment or flow interruption through the combined action of the float buoyancy and the lever mechanism, being energy-efficient and safe and reliable.

When purchasing, it is recommended to select the appropriate model based on the actual size of the water tank, water pressure conditions and medium characteristics.

During installation, avoid the lever colliding with the inner wall of the water tank to prevent the float from getting stuck; in areas with poor water quality, it is recommended to combine with a pre-filter to reduce the wear of the valve core by water scale.

Through the sharp contrast between the bright yellow metal texture and the shiny yellow float, using corrosion-resistant brass material and anti-aging plastic, and with key components undergoing tens of thousands of life tests, which far exceed the basic industry standards, the product intuitively conveys the positioning of "solid, reliable, and practical", and is a classic solution in the traditional mechanical water level control field.

Fully mechanical structure: No electricity or external control required. It achieves automatic water replenishment or flow interruption through the combined action of the float buoyancy and the lever mechanism, being energy-efficient and safe and reliable.

When purchasing, it is recommended to select the appropriate model based on the actual size of the water tank, water pressure conditions and medium characteristics.

During installation, avoid the lever colliding with the inner wall of the water tank to prevent the float from getting stuck; in areas with poor water quality, it is recommended to combine with a pre-filter to reduce the wear of the valve core by water scale.

This all-copper float valve, with its solid materials, classic and reliable design, and precise automatic control function, has become a practical choice in the field of water level management. Through the distinct contrast between the bright yellow metal texture and the bright yellow float, the product directly conveys the positioning of "solid, reliable, and practical", and is a classic solution in the traditional mechanical water level control domain.
