External Thread 90° Bent Full Brass Ball Valve

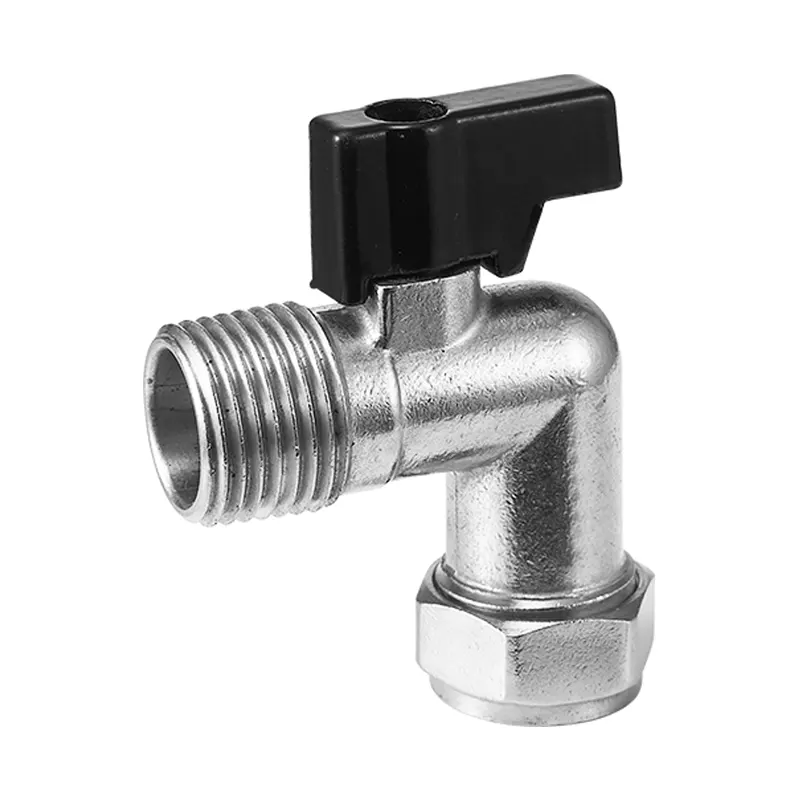

Produced by Ming Da Hai Chen, this External Thread 90° Bent Full Brass Ball Valve features an integrated L-shaped 90° bent valve body, combining right-angle elbow and water ball valve functions in one piece. One end is equipped with a standard external thread interface, while the downward bent end adopts a special double ferrule union connector for aluminum-plastic pipes. The top is fitted with an integrated bright black engineering plastic handle, creating a simple and eye-catching matching of bright chrome-plated metal and black texture. Designed for right-angle pipeline installation at wall corners, water heaters and wall-hung boiler manifolds, it removes the need for independent elbow accessories, enables compact and tidy piping layout, and adapts to narrow spaces such as cabinets and ceilings.

Integral Forged Brass Body & Superior Corrosion Resistance

The entire valve body is integrally forged from high-quality full brass without sand holes or splicing gaps, featuring high structural strength, pressure resistance and explosion-proof performance. The surface adopts multi-layer thickened chrome plating treatment with uniform and bright coating, which effectively resists limescale and water vapor erosion. It will not rust or peel during long-term delivery of cold and hot water, ensuring excellent durability.

90° Bent Full-Bore Flow Channel & Large Flow Performance

Built with an integrated 90° bent flow channel and full-bore spherical ball core, the valve inner cavity adopts a non-reducing design with extremely low water flow resistance. It causes no water pressure attenuation or weak water output, realizing dual functions of steering diversion and pipeline on-off control. This External Thread 90° Bent Full Brass Ball Valve delivers smoother water flow than traditional angle valves, effectively solving problems of insufficient water pressure and slow water outlet for water heaters and heating pipelines.

Dual-Layer PTFE Sealing & Zero Leakage Protection

The ball core is fitted with high-temperature resistant PTFE sealing gaskets to form a soft and hard composite sealing structure, ensuring smooth switching operation. With excellent high and low temperature resistance and anti-aging performance, it remains tightly sealed and leakage-free after tens of thousands of switching times. Multi-layer rubber sealing rings are added at the valve stem connection to double block medium seepage from gaps, achieving stable applicability for both cold and hot water.

Precision External Thread Interface & Strong Compatibility

One end of the valve body is designed with standard cylindrical external threads, featuring precise pitch, full tooth shape and burr-free surface. It can be directly matched with various internal thread joints, water heater inlets and manifold internal thread interfaces. Thread sealing can be completed by wrapping raw material tape, with strong universality, firm installation and no slipping. The large-diameter nozzle design ensures stable large-flow water delivery.

Thickened Ferrule Locking Structure & Labor-Saving Installation

The bent end is equipped with a thickened hexagonal locking nut, adopting a professional fast-install ferrule structure dedicated for aluminum-plastic composite pipes. The thickened hexagonal nut has clear edges and corners, which prevents wrench slipping during fastening, enabling labor-saving and convenient disassembly and assembly.

Humanized 90° Quick-Switch Handle Design

The top of the valve body is equipped with an integrated black ABS engineering plastic short toggle handle in square shape. A reserved circular hole on the top allows installation of cable ties or chains to prevent accidental switch operation. It adopts a standard 90° rotary opening and closing structure: the pipeline is fully open when the handle is parallel to the flow direction, with clear switch status visible at a glance. Full opening and closing can be realized with one simple toggle without auxiliary tools. The black plastic features heat insulation, preventing scalding when conveying high-temperature water, and is moisture-proof and crack-resistant, facilitating classified management of plumbing engineering pipelines.

Wide Media & Temperature Adaptability

The valve stem adopts a drip-proof sealing design with built-in PTFE (Polytetrafluoroethylene) sealing rings. It features aging resistance, high and low temperature resistance, and no leakage after long-term repeated switching. It is suitable for multiple media including cold and hot water (-20℃~100℃) and low-pressure gas.

Usage Precautions

The handle only supports 90° switching rotation. Do not twist with excessive force to avoid damaging the internal ball core structure.

Exquisite Workmanship & Reliable Quality

This External Thread 90° Bent Full Brass Ball Valve boasts exquisite overall workmanship. The chrome-plated surface is uniform and delicate without burrs; the 90° bending transition is smooth and natural; the external threads are precise and neat. The hexagonal locking nut is neatly cut with standard edges, and the internal ferrule sealing accessories are perfectly matched. The black plastic handle is thickly injection-molded with smooth burr-free edges and minimal assembly gaps. Solid and durable, it is a special high-quality corner water control valve for household HVAC and plumbing engineering.
